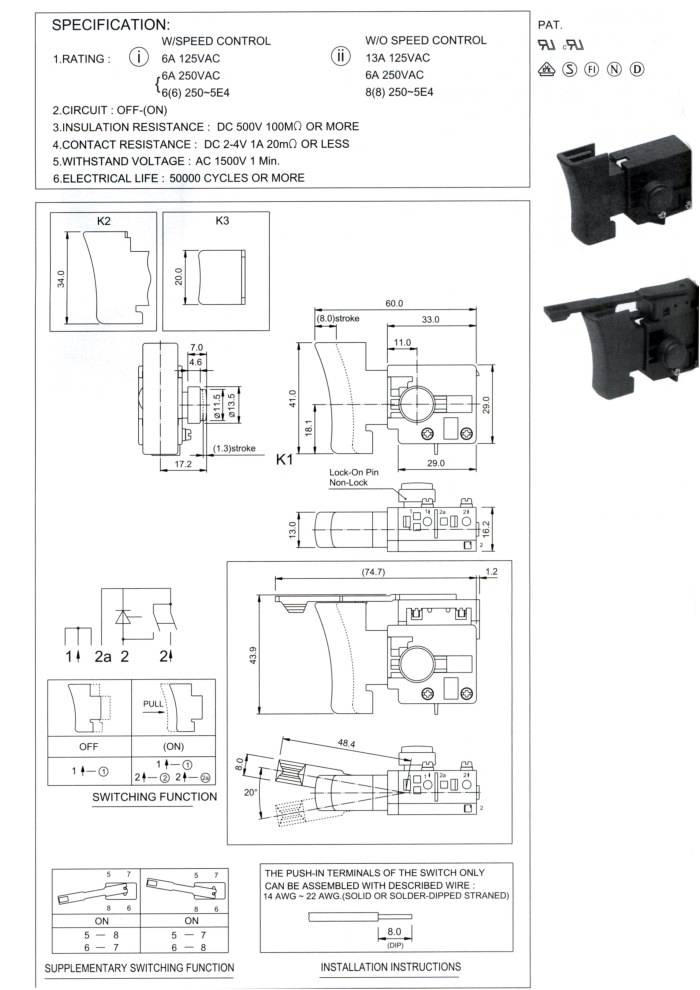

Trigger Switch

8303

 ¡@

SPECIFICATION :

*RATING : (¢¹) W/SPEED CONTROL  (¢º) W/O SPEED CONTROL
                           6A 125VAC                            13A 125VAC
                           6A 250VAC                            6A 250VAC
                           6(6)250~5E4                        8(8) 250~5E4
*CIRCUIT : OFF-(ON)
*INSULATION RESISTANCE : DC 500V 100M£[ OR MORE
*CONTACT RESISTANCE : DC 2-4V 1A 20m£[ OR LESS
*WITHSTAND VOLTAGE : AC 1500V 1Min.
*ELECTRICAL LIFE :  50000 CYCLES OR MORE

¡@
