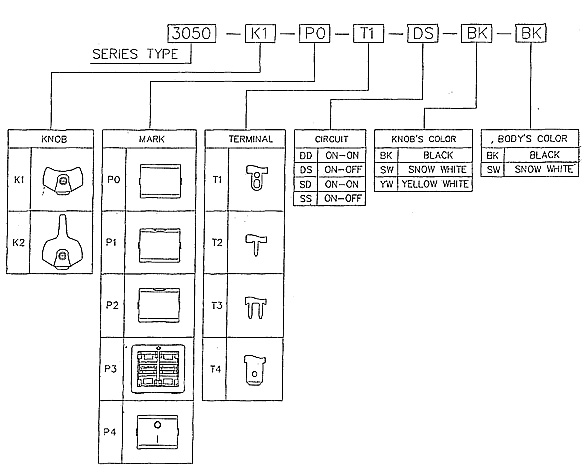

3050  Highly Reliable DPST Rocker Switches with On/Off Circuit

* Rating:
   3050: 16A 125VAC, 10A, 250VAC (UL, CSA)
              16(4)A 250V~ T85 (VDE)
* Insulation resistance: DC 500V 100MΩ or MORE
* Contact resistance: DC 2-4V 1A 20mΩ OR LESS
* Withstanding voltage: AC 1500V 1 Min
* Operation force: 500 +/- 200gf
* Ambient temperature: -10℃ to 85 ℃
* Electrical life: 10,000 CYCLES
