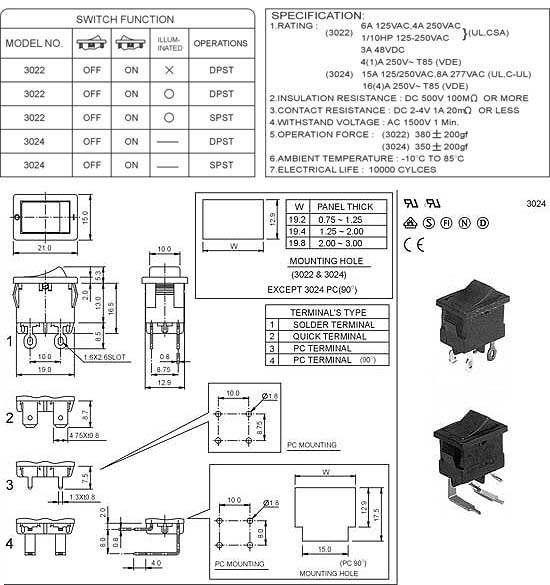

SPECIFICATION :

* Rating: 15A, 125 / 250VAC , 8A, 277VAC (UL, C-UL)
     TV-5 (UL, C-UL)  16(4)A 250V to T85 (VDE)                                                                        8/128A 250VAC (ENEC)   (128A CAPACITIVE 10,000 OPERATIONS)

* Insulation resistance: DC 500V, 100M ohms or more
* Contact resistance: DC 2-4V, 1A, 20m ohms or less
* Withstanding voltage: AC 1500V, one minute
* Operation force:  350gf +/- 200gf
* Ambient temperature: -10 to 85 degrees Celsius
* Electrical life: 10,000 cycles
