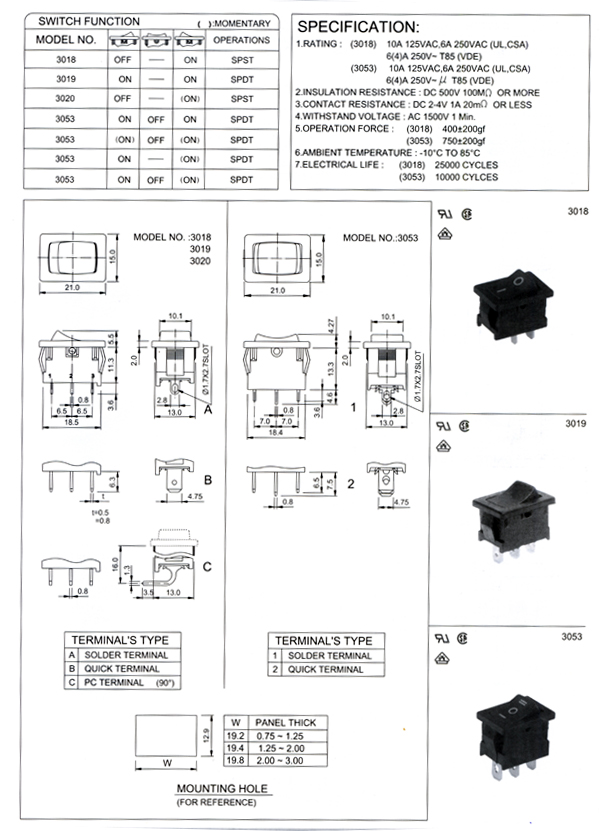

SPECIFICATION :

*RATING : (3018) 10A 125VAC,6A 250VAC(UL,CSA)
                                   6(4)A 250V~T85(VDE)
                     (3053) 10A 125VAC,6A 250VAC(UL,CSA)
                                    6(4)A 250V~μ T85(VDE)
*INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
*CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
*WITHSTAND VOLTAGE : AC 1500V 1 Min.
*OPERATION FORCE : (3018)  400±200gf
                                            (3053)  750±200gf
*AMBIENT TEMPERATURE : -10℃ TO 85℃
*ELECTRICAL LIFE : (3018)  25000 CYCLES
                                         (3053)  10000 CYCLES
