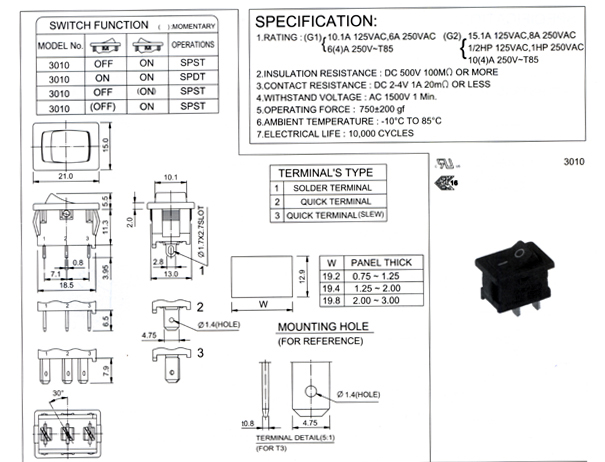

SPECIFICATION :

*RATING : (G1) 10.1A 125VAC,6A 250VAC     (G2)15.1A 125VAC,8A 250VAC
                             6(4)A 250V~T85                              1/2HP 125VAC,1HP 250VAC
                                                                                        10(4)A 250V~T85
*INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
*CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
*WITHSTAND VOLTAGE : AC 1500V 1 Min.
*OPERATING FORCE : 750±200 gf
*AMBIENT TEMPERATURE : -10℃ TO 85℃
*ELECTRICAL LIFE : 10,000 CYCLES
