Push Switch
8203
¡@
|
|

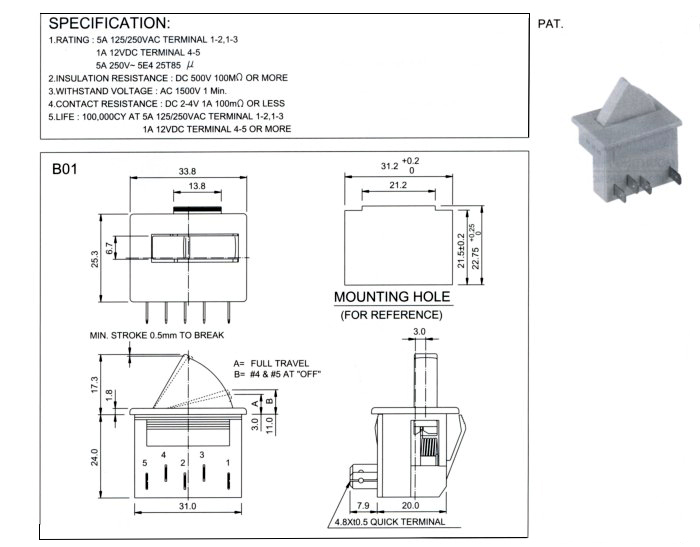

SPECIFICATION
: *RATING : 5A 125/250VAC TERMINAL 1-2,1-3 1A 12VDC TERMINAL 4-5 5A 250V~5E4 25T85 £g *INSULATION RESISTANCE : DC 500V 100M£[ OR MORE *WITHSTAND VOLTAGE : AC 1500V 1Min. *CONTACT RESISTANCE : DC 2-4V 1A 100m£[ OR LESS *LIFE : 100,000CY AT 5A 125/250VAC TERMINAL 1-2,1-3 1A 12VDC TERMINAL 4-5 OR MORE |
