Battery

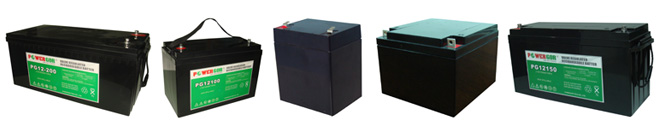

Deep Series Battery

Specification

Model No.	Nominal Voltage (V)	Nominal Capacit (AH)	Dimensions(mm)				Dimensions(in)				Weight (Approx.)		Terminal
Model No.	Nominal Voltage (V)	Nominal Capacit (AH)	Length	Width	height	Overall Height	Length	Width	Height	Overal Height	Kg	Ib	Terminal
DB6-100	6	100	194	170	205	210	7.64	6.69	8.07	8.27	16.50	36.38	F9
DB6-150	6	150	260	180	245	250	10.24	7.09	9.65	9.84	23.50	51.81	F11
DB6-200	6	200	321	176	226	246	12.64	6.93	8.90	9.69	32.00	70.55	F5
DB12-33	12	33	195	130	155	180	7.68	5.12	6.10	7.09	10.20	22.49	F7
DB12-40	12	40	197	165	170	170	7.76	6.50	6.69	6.69	13.50	29.76	F4
DB12-50	12	50	229	138	208	211	9.02	5.43	8.19	8.31	16.50	36.38	F9
DB12-60	12	60	260	168	211	214	10.24	6.61	8.31	8.43	20.50	45.19	F9
DB12-70	12	70	260	168	211	214	10.24	6.61	8.31	8.43	22.50	49.60	F9
DB12-80P	12	80	260	168	211	214	10.24	6.61	8.31	8.43	25.00	55.12	F9
DB12-90	12	90	306	169	211	214	12.05	6.65	8.31	8.43	27.00	59.52	F9
DB12-100	12	100	330	171	214	220	12.99	6.73	8.43	8.66	31.00	68.34	F9
DB12-120	12	120	409	176	225	225	16.10	6.93	8.86	8.86	35.50	78.26	F11
DB12-134	12	134	342	172	280	285	13.46	6.77	11.02	11.22	43.00	94.80	F11
DB12-150	12	150	485	172	240	240	19.09	6.77	9.45	9.45	45.50	100.31	F11
DB12-180	12	180	494	206	209	235	19.45	8.11	8.23	9.25	56.00	123.46	F11
DB12-200	12	200	522	238	218	221	20.55	9.37	8.58	8.70	64.00	141.10	F11
DB12-250	12	250	521	269	220	223	20.51	10.59	8.66	8.78	78.00	171.96	F11

Features:
Deep Cycles
Thick plate design based on sturdy lead-calcium grids and advanced paste technology for discharge-deep times. It’s better used in Solar systems and so on.
Sealed Maintenance Free
Peakpower's unique design and sealing technique guarantees that no electrolyte leakage can occur from the terminals or case of any Powergor Battery Tech. co., ltd.. The sealed system eliminates electrolyte checking and water addition.
Long Shelf life and storage
Special vents, high purity lead and grid alloys assure a low self-discharge rate and consequently a long shelf life. Lower storage temperatures enhance shelf life characteristic even further.
High quality and firm reliability
Peakpower batteries can keep the stable and reliable capacity. It also can withstand overcharge, over discharge, vibration and shock. It is also capable of extended storage
Standby use
The float service life, or life expectancy under continuous float charge at 2.25vpc at 20 deg is 5 years for batteries up to 26ah and 10 years for batteries with capacities greater than 30ah.
Cyclic use
The number of charge/discharge cycles depends on the capacity taken from the battery (a function of discharge rate and depth of discharge) operating temperature and charging method.
Easy Installation
Batteries are easily installed in a dry and vented place; meanwhile it can be put by the rack to use safely.
Compact design
Peakpower batteries utilize state of the art design, highest grade materials, and a carefully controlled plate making process to provide excellent output per cell.
Designed-in reliability
Cutting edge manufacturing and process control combined with strict quality assurance procedures guarantee consistent and dependable performance.
Low Self-Discharge
Because of the use of Lead Calcium grids alloy, Peakpower VRLA battery can be stored for long periods of time without recharge.
Wide operating temperature range
Charge: -15 to 50℃
Discharge: -15 to 60℃
Storage: -20 to +50 (in fully charged condition)

Applications:
Solar system Wind and photovoltaic equipments Telecommunications Cycling and float service Golf cars and buggies	Wheelchair and electric vehicles Boats/Marine/Navigational Aids Computer, camera, phone and medical sets Lawn mowers Electrical Characteristics:
