Lead-Acid Battery

Design 5 years Series

¡@

Specification Design 5 years series
Model No. Nominal
Voltage
(V)		 Nominal
Capacity
(AH)		 Dimensions(mm) Dimensions(in) Weight
(Approx.)		 Terminal
Length Width Height Overall
Height		 Length Width Height Overall
Height		 Kg Ib
SB6-1.2 6 1.2 97 24 52 58 3.82 0.94 2.05 2.28 0.31 0.68 F1
SB6-2.8 6 2.8 66 33 97 104 2.60 1.30 3.82 4.09 0.60 1.32 F1
SB6-2.8P 6 2.8 66 33 100 106 2.60 1.30 3.94 4.17 0.61 1.34 F1
SB6-3.2 6 3.2 134 35 61 67 5.28 1.38 2.40 2.64 0.66 1.46 F1
SB6-3.4 6 3.4 134 35 61 67 5.28 1.38 2.40 2.64 0.71 1.57 F1
SB6-4 6 4 70 47 101 107 2.76 1.85 3.98 4.21 0.70 1.54 F1
SB6-4.5 6 4.5 70 47 101 107 2.76 1.85 3.98 4.21 0.75 1.65 F1
SB6-5 6 5 70 47 101 107 2.76 1.85 3.98 4.21 0.83 1.83 F1
SB6-6 6 6 70 47 101 107 2.76 1.85 3.98 4.21 0.92 2.03 F1
SB6-6.5 6 6.5 151 34 94 100 5.94 1.34 3.70 3.94 1.10 2.43 F1
SB6-7 6 7 151 34 94 100 5.94 1.34 3.70 3.94 1.17 2.58 F1
SB6-9 6 9 151 34 94 100 5.94 1.34 3.70 3.94 1.40 3.09 F1
SB6-8 6 8 98 56 117 119 3.86 2.20 4.61 4.69 1.35 2.98 F1
SB6-10 6 10 151 50 94 100 5.94 1.97 3.70 3.94 1.60 3.53 F2
SB6-12 6 12 151 50 94 100 5.94 1.97 3.70 3.94 1.85 4.08 F2
SB6-20 6 20 157 83 125 130 6.18 3.27 4.92 5.12 3.60 7.94 F3
SB12-1.2 12 1.2 97 43 52 58 3.82 1.69 2.05 2.28 0.61 1.34 F1
SB12-1.4 12 1.4 97 43 52 58 3.82 1.69 2.05 2.28 0.61 1.34 F1
SB12-2 12 2 178 35 61 67 7.01 1.38 2.40 2.64 0.90 1.98 F1
SB12-2.3 12 2.3 178 35 61 67 7.01 1.38 2.40 2.64 0.99 2.18 F1
SB12-3.2 12 3.2 134 67 61 67 5.28 2.64 2.40 2.64 1.30 2.87 F1
SB12-3.4 12 3.4 134 67 61 67 5.28 2.64 2.40 2.64 1.40 3.09 F1
SB12-4 12 4 90 70 101 107 3.54 2.76 3.98 4.21 1.40 3.09 F1
SB12-4.5 12 4.5 90 70 101 107 3.54 2.76 3.98 4.21 1.45 3.20 F1
SB12-5 12 5 90 70 101 107 3.54 2.76 3.98 4.21 1.65 3.64 F1
SB12-6 12 6 90 70 101 107 3.54 2.76 3.98 4.21 1.80 3.97 F1
SB12-6.5 12 6.5 151 52 94 99 5.94 2.05 3.70 3.90 1.92 4.23 F1
SB12-6.5P 12 6.5 151 51 95 100 5.94 2.01 3.74 3.94 1.92 4.23 F1
SB12-6.5K 12 6.5 151 65 94 100 5.94 2.56 3.70 3.94 2.10 4.63 F1
SB12-7 12 7 151 65 94 100 5.94 2.56 3.70 3.94 2.30 5.07 F1
SB12-7.2 12 7.2 151 65 94 100 5.94 2.56 3.70 3.94 2.35 5.18 F1
SB12-7.5 12 7.5 151 65 94 100 5.94 2.56 3.70 3.94 2.38 5.25 F1
SB12-8.5 12 8.5 151 65 94 100 5.94 2.56 3.70 3.94 2.45 5.40 F1
SB12-9 12 9 151 65 94 100 5.94 2.56 3.70 3.94 2.60 5.73 F1
SB12-10 12 10 151 98 95 101 5.94 3.86 3.74 3.98 3.50 7.72 F2
SB12-12 12 12 151 98 95 101 5.94 3.86 3.74 3.98 3.70 8.16 F2
SB12-15 12 15 181 77 167 167 7.13 3.03 6.57 6.57 5.00 11.02 F3
SB12-17 12 17 181 77 167 167 7.13 3.03 6.57 6.57 5.20 11.46 F3
SB12-18 12 18 181 77 167 167 7.13 3.03 6.57 6.57 5.50 12.13 F8
SB12-20 12 20 181 77 167 167 7.13 3.03 6.57 6.57 5.80 12.79 F8
SB12-22 12 22 181 77 166 166 7.13 3.03 6.54 6.54 6.40 14.11 F8
SB12-24 12 24 166 175 125 125 6.54 6.89 4.92 4.92 8.20 18.08 F8
SB12-26 12 26 165 176 127 127 6.50 6.93 5.00 5.00 8.40 18.52 F3
SB12-28 12 28 166 175 125 125 6.54 6.89 4.92 4.92 9.00 19.84 F8

Features
1. Sealed Maintenance Free
Peakpower's unique design and sealing technique guarantees that no electrolyte leakage can occur from the terminals or case of any Powergor Battery Tech. co., ltd.. The sealed system eliminates electrolyte checking and water addition.

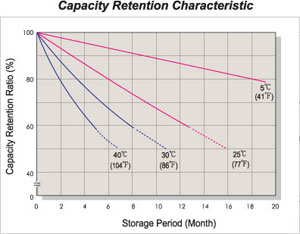

2.  Long Shelf life and storage
Special vents, high purity lead and grid alloys assure a low self-discharge rate and consequently a long shelf life. Lower storage temperatures enhance shelf life characteristic even further.
3.  High quality and firm reliability
Peakpower batteries can keep the stable and reliable capacity. It also can withstand overcharge, over discharge, vibration and shock. It is also capable of extended storage

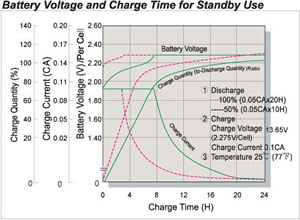

4.  Standby use

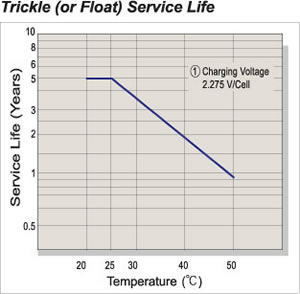

The float service life, or life expectancy under continuous float charge at 2.25vpc at 20 deg is 5 years for batteries up to 26ah and 10 years for batteries with capacities greater than 30ah.

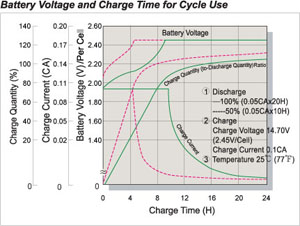

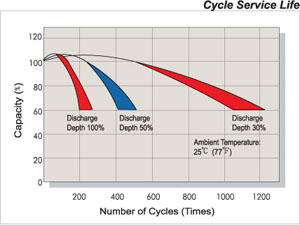

5.  Cyclic use
The number of charge/discharge cycles depends on the capacity taken from the battery (a function of discharge rate and depth of discharge) operating temperature and charging method.
6.  Easy Installation
Batteries are easily installed in a dry and vented place; meanwhile it can be put by the rack to use safely.
7. compact design
Peakpower batteries utilize state of the art design, highest grade materials, and a carefully controlled plate making process to provide excellent output per cell.
8.  designed-in reliability
Cutting edge manufacturing and process control combined with strict quality assurance procedures guarantee consistent and dependable performance.
9.  Low Self-Discharge
Because of the use of Lead Calcium grids alloy, Peakpower VRLA battery can be stored for long periods of time without recharge.

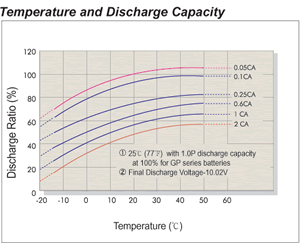

10.  Wide operating temperature range
Charge: -15 to 50¢J
Discharge: -15 to 60¢J
Storage: -20 to +50 (in fully charged condition)

Applications:
UPS systems / Telecommunications equipment / Emergency lighting / Fire and burglar alarm systems / Access control devices / Electronic equipment require memory protecting / Solar powered systems
