Pedestrian Indications

Weizhou currently manufactures 3 types/styles of PEDESTRIAN LED RETROFIT product offerings in a variety of configurations including "FULL" & "OUTLINE" symbol formats:

Our "SEALED ("S") INSERT TYPE" retro is a self contained unit which mounts inside the door requiring the removal of the original glass legend. The unit is connected to the signal housing terminal block via standard fork/spade or quick connect female slip terminations.

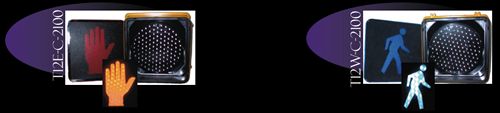

Our "TYPE 2 ("T2") SCREW-IN" retro, available in orange or white, incorporates the same back cover as our trademark "screw-in" LED TSL balls & arows. This lamp simply screws into the conventional Edison base replacing the conventional incandescent bulb. No modification to the door, the legend/glass lens or signal housing is required. This lamp is truly the fastest PED retrofit unit in the industry.

NOTE: All Full Symbol PED Indecations meet the March 2004 PTCSH ITE Purchasing Specifications.

9 Inch Screw-in Pedestrian "Type 2"

Model
Number		 Descr Beam
Color		 LED
Type		 Power
(Typ)		 Input
Voltage		 Current
Reg.		 THD
<20%		 PFC Temp
Comp		 Meets
Energy
Star
T9W-C-2100 MAN "T2" FULL MAN WHITE lnGaN 8.4 80~135
Vac		 YES YES >.90 YES YES N/A
T9E-C-2100 HAND "T2" FULL HAND Portland Orange AllnGaP 6.4 80~135
Vac		 YES YES >.90 YES N/A

‘@

12 Inch Screw-in Pedestrian "Type 2"

Model
Number		 Descr Beam
Color		 LED
Type		 Power
(Typ)		 Input
Voltage		 Current
Reg.		 THD
<20%		 PFC Temp
Comp		 Meets
Energy
Star
T12W-C-2100 MAN "T2" FULL MAN WHITE lnGaN 11.0 80~135
Vac		 YES YES >.90 YES N/A
T12E-C-2100 HAND "T2" FULL HAND Portland Orange AllnGaP 8.5 80~135
Vac		 YES YES >.90 YES N/A
T12W-H-2100 MAN "T2" FULL MAN WHITE lnGaN 8.3 80~135
Vac		 YES YES >.90 YES N/A
T12E-H-2100 HAND "T2" FULL HAND Portland Orange AllnGaP 7.0 80~135
Vac		 YES YES >.90 YES N/A
