Pedestrian Indications

NOTE: All Full Symbol PED Indications meet the March 2004 PTCSH ITE Purchasing Specifications.

12 Inch Pedestrian

Model
Number		 Descr Beam
Color		 LED
Type		 Power
(Typ)		 Input
Voltage		 Current
Reg.		 THD
<20%		 PFC Temp
Comp		 Meets
Energy
Star
TP12A-WM "S" Outline MAN WHITE lnGaN 5.8 80~135
Vac		 YES YES >.90 YES YES
TP12A-EH "S" Outline HAND Portland Orange AllnGaP 5.9 80~135
Vac		 YES YES >.90 YES YES
TP12B-WM "S" FULL MAN WHITE lnGaN 7.0 80~135
Vac		 YES YES >.90 YES YES
TP12B-EH "S" FULL HAND Portland Orange AllnGaP 6.6 80~135
Vac		 YES YES >.90 YES YES
TP12G-HM "S" Overlay Outline Hand/ MAN Portland Orange/ White lnGaN 6.4 80~135
Vac		 YES YES >.90 YES YES
TP12H-HM "S" Overlay Full Hand/ Man Portland Orange/ White AllnGaP lnGaN 7.3 80~135
Vac		 YES YES >.90 YES YES
TP12K-HM "S" Overlay FULL Hand/ Outline MAN Portland Orange/ WHITE AllnGaP lnGaN 6.5 80~135
Vac		 YES YES >.90 YES YES

‘@

14 Inch Pedestrian

Model
Number		 Descr Beam
Color		 LED
Type		 Power
(Typ)		 Input
Voltage		 Current
Reg.		 THD
<20%		 PFC Temp
Comp		 < Meets
Energy
Star
TP14C-HM "S" Outline Hand/ MAN Portland Orange/ WHITE AllnGaP lnGaN 6.0 80~135
Vac		 YES YES >.90 YES N/A
TP14D-HM "S" FULL Symbol Hand/ MAN Portland Orange/ WHITE AllnGaP lnGaN 6.6 80~135
Vac		 YES YES >.90 YES N/A
TP14E-HM "S" Full Man/ Outline Hand Portland Orange/ WHITE AllnGaP lnGaN 6.0 80~135
Vac		 YES YES >.90 YES N/A
TP14F-HM "S" Outline Man/ Full Hand Portland Orange/ WHITE AllnGaP lnGaN 6.1 80~135
Vac		 YES YES >.90 YES N/A

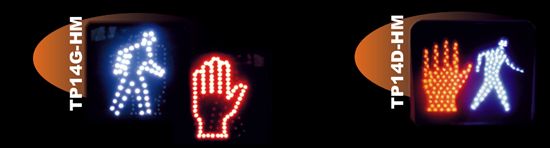

TP14G-HM "S" Overlay Outline Hand/ MAN Portland Orange/ WHITE AllnGaP lnGaN 6.0 80~135
Vac		 YES YES >.90 YES N/A
TP14H-HM "S" Overlay Full Hand/ MAN Portland Orange/ WHITE AllnGaP lnGaN 7.2 80~135
Vac		 YES YES >.90 YES N/A
