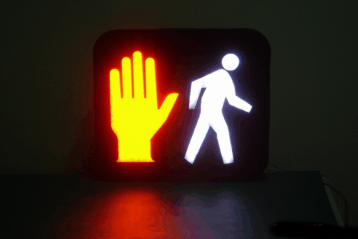

LED Incandescent Look Pedestrian Indications

Weizhou's Pedestrian Indication offerings incorporate a conventional incandescent look (IL) style in multiple configurations. These indications provide excellent "uniformity & visibility" while providing the power efficiency & maintenance advantages with past generation LED PED offerings.

NOTE: All Full Symbol PED Indications meet the March 2004 PTCSH ITE Purchasing Specifications.

12 Inch Pedestrian

Model
Number
Description Beam
Color
LED
Type
Power
(Typ)
Input
Voltage
Current
Reg.
THD
<20%
PFC Temp
Comp
Meets
Energy
Star
TSL-PED-12-HIL "S" Full
Symbol Hand
Portland Orange AllnGaP 6W 80~135
Vac
YES YES >.90 YES YES
TSL-PED-12-MIL "S" Full
Symbol Man
White AllnGaP 6W 80~135
Vac
YES YES >.90 YES YES
TSL-PED-12-OIL "S" Full
Symbol
Overlay
Hand/Man
Portland Orange
White
AllnGaP
lnGaN
6W
6W
80~135
Vac
YES YES >.90 YES YES


16 Inch Pedestrian

Model
Number
Description BEAM
Color
LED
Type
Power
(Typ)
Input
Voltage
Current
Reg.
THD
<20%
PFC Temp
Comp
Meets
Energy
Star
TSL-PED-16-DIL "S" FULL Symbol
Dual
Hand/Man
Portland Orange
White
AllnGaP
InGaN
8W
7W
80~135
Vac
YES YES >.90 YES YES
TSL-PED-16-OIL "S" FULL SYMBOL
Overlay
Hand/Man
Portland Orange
White
AllnGaP
InGaN
8W
7W
80~135
Vac
YES YES >.90 YES YES
