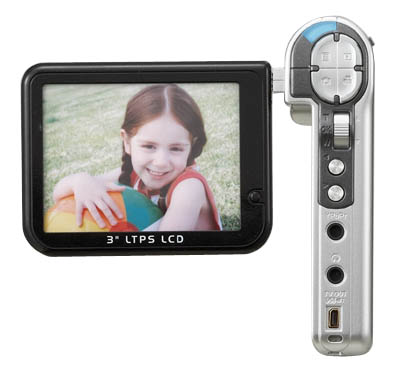

Digital Video Camrecorder

DDV-7120HD




@

Specification
Sensor type
7M 1/2.5" CCD(Panasonic)
Total Sensor Pixel
7.2 M - 3,152(H) x 2,342(V)
Image Resolutions
7M - 3,096(H) x 2,328(V)
Digital zoom
10x - TBD
File Formats
JPEG (Exif 2.2)
Printer Output
PictBridge compliant
Picture Sizes
7M - 3,096(H) x 2,328(V) 5M - 2592(H) x 1944(V) 3M - 2048(H) x 1536(V)
@
1M - 1280(H) x 960(V) VGA - 640(H) x 480(V)
Memory
Support External. Internal Memory: 32MB SDRAM DDR2 : 64MB Support SD2.0 (Max card sizes 4GB)
Picture Sizes
VGA 1M 3M 5M 7M
Best 130K 400K 1230K 2000K 2800K
Fine 65K 200K 630K 1000K 1400K
Normal 35K 100K 315K 500K 700K
Max. shutter delay
< 2 sec (TBC)
Lens/Focal Info
Fixed Focus Lens F3.25/ F7.0(f = 6 mm); Focal length (equiv. to 35mm film): 42.05 mm Glass elements: 3G2P Multi-coating : Yes Aspherical lenses:2pcs Auto focus: YES
Flashlight
Auto / Auto with Red-eye reduction / Fill in /Slow sync /Off
AE Compensation
+/- 2.0 EV in 1/3 EV increment
Correction steps
1/3 EV step
White Balance
Auto, fluorescent, Direct sunlight, Incandescent
Shutter speed
< 1/500 sec
ISO Sensitivity
Auto, 100, 200, 400, 800, 1000
LCD Panel
Size 3" (4:3); Pixel-230K
Shooting distance
normal 0.8M ~ ¡Û (Wide); macro47 cm ~ 80 cm
Scene programs
Auto, Portrait, Landscape, Sports, Night
OSD Languages
English/ German/ French/ Spanish/Italian/ Portuguese/ Dutch/Russian/ Turkish/ S.Chinese/ T.Chinese/ Japanese/ Korean
Self timer
2 sec, 5 sec, 10 sec, Selectable
Battery-types
Lithium-ion Battery (NP60)
Dimension
61(W) x 108(H) x 29.3(D) mm
Accessories
Hand-Strap/Pouch/USB-Cable/Video-Cable(CVBS)/Video-Cable(YPbPr)/Audio-Cable/Adaptor/NP60Battrery
Software
ArcSoft PhotoImpression 5.0, VideoImpression 2.0, Media Player 9
Cert and Report
EMC: CE/FCC; Others :RoHS, EN

@
